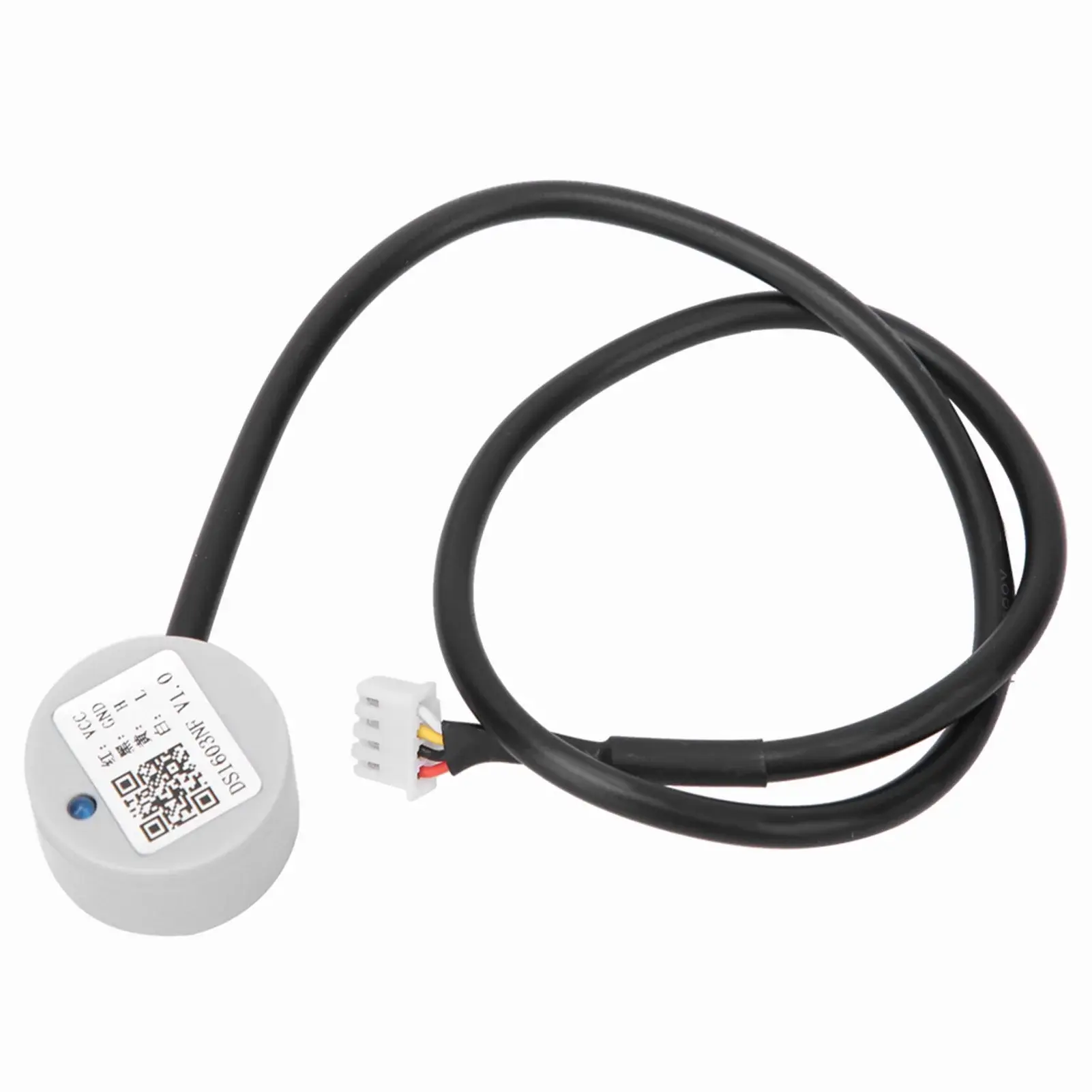

Ultrasonic Sensor DS1603NF V1.0 (Switch)Measuring Range(50-2000)

The DS1603 series liquid level sensor breaks through the traditional installation method, realizes the real non-contact measurement of liquid level in the airtight container. The sensor is installed directly below (bottom) of the container to detect the height of the liquid level. There is no need to open a hole in the container, the installation is simple. It can accurately measure the level of various toxic substances, strong acids, strong alkalis and various pure liquids in high-temperature, high-pressure airtight containers. The liquid level sensor has no special requirements for the material of the liquid medium and container, and can be widely used.

Features:

1. Non-contact liquid level measurement, safe to use.
2. Real-time tracking of the whole range, no need to restart when refill container.
3. Working temperature -15°C to +60°C.
4. Storage temperature -25°C to +80°C.

Applications:

1. High protection level.
2. Stable and reliable output.
3. Strong anti-static.
4. High measurement accuracy.
5. Real-time detection of liquid level in containers of dense materials such as steel, glass, iron, ceramics, and non-foamed plastics.
   Real-time detection of the liquid level of pure single liquid or miscible mixed liquid without serious deposition.

Package Includes:

1 x Ultrasonic Sensor DS1603NF V1.0 (Switch)Measuring Range(50-2000)Model: DS1603NF V1.0 (Switch)

1. Operating Voltage: 10 to 36V
2. Blind Spot: <50mm
3. Measuring Range(With Horn): 50 to 2000mm
