SB312A is the latest digital sensor module developed for human body detection.
A digital PIR sensor combined with a Fresnel lens is mounted on a compact-size PCB and
resistance. IC is not needed anymore. Digital output improves performance.

Note: For more technical details go through Datasheet in the attachment section

Lens information:

Lens diameter: 13.5mm (default), detecting angle≥100°, de

Features:

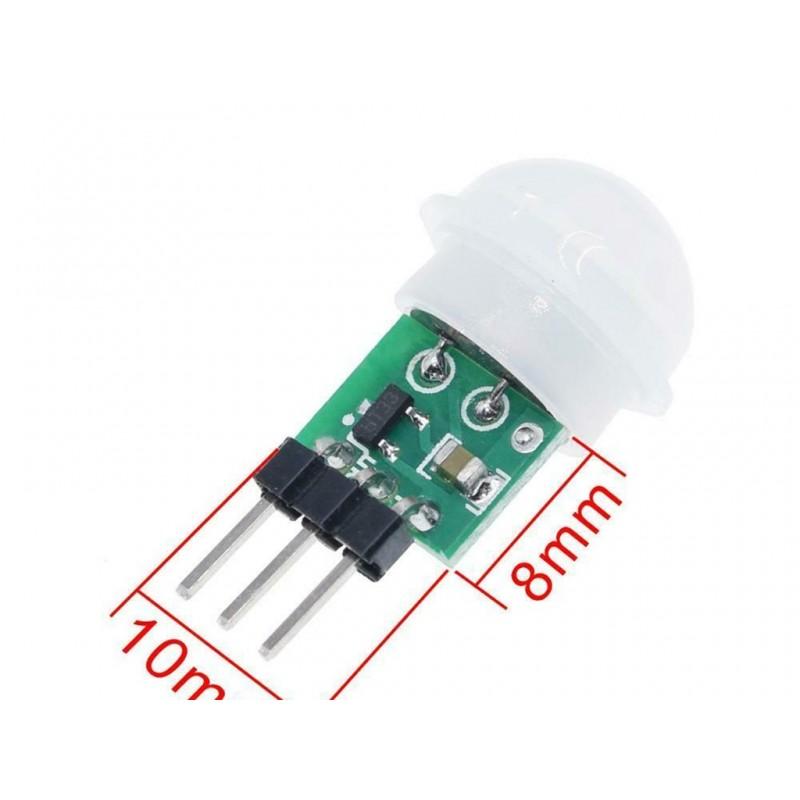

Compact size: 8*10 mm
Supply Voltage: DC3V～12V
Quiescent Current:≤20uA
Voltage Output: High-level signal 3V; Standby output is 0V
High sensitivity
Delay time: 2.3S
Blockade time:2.3S
Trigger mode: Repeatable triggered
Operation Temperature: -20℃～+55℃
Infrared sensor: dual element, low noise, high sensitivity
Detecting length: 3～5m
Detecting Angle:≥100°

Package Includes:

1 x PIR SENSOR MODULE-SB312ADC-INPUT： working voltage or input supply voltage (range is DC 3V～12V)

VOUT： signal output pin. Output: High-level signal 3V； Standby 0V。
The SB312A module only output High/Low level.
